727 ACD/ P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing

Name: 727 ACD/ P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 727 ACD/ P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 727 ACD/ P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	727 ACD/ P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	727 ACD/ P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

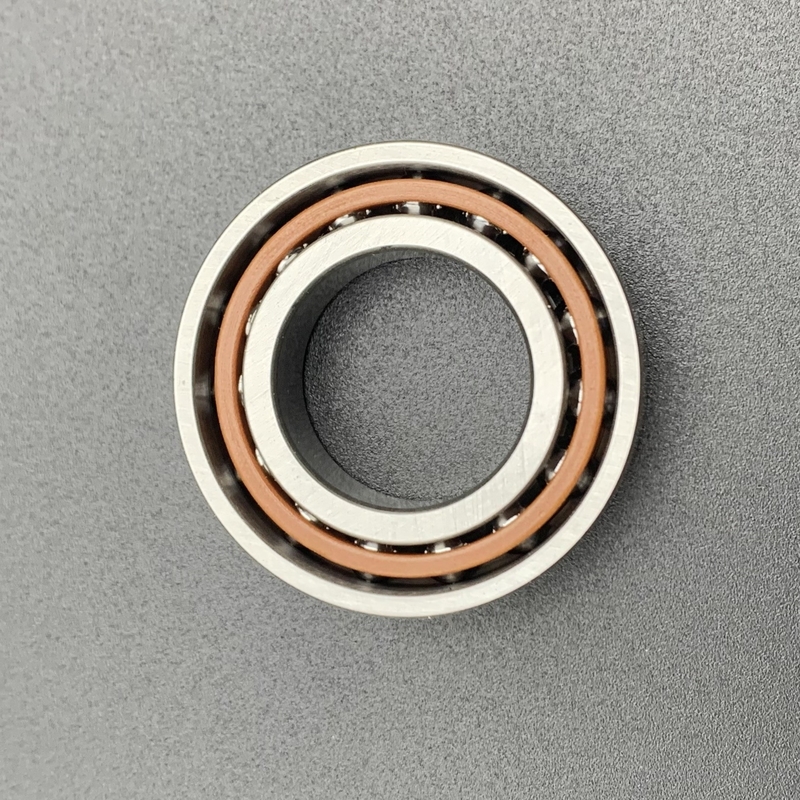

727 ACD/ P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing

727 ACD/ P4A 7*22*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

The 727 ACD/P4A bearing,bore diameter is 7 mm, outside diameter is 22mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	727 ACD/ P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	7 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	22 mm
	Outer Bore Diameter Tolerance	-0.005mm to 0
	Width (B)	7 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.013 kg
	Matched Arrangement	No (DB,DF,DT,DG)
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	2910 N
	Static Radial Load	1120 N
	Reference Speed For Grease (r/min)	85,000 rpm
	Limiting Speed For Oil(r/min)	130,000 rpm

727 ACD/ P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing 0

727 ACD/ P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing 1

What's the Performance Features of 727 ACD/ P4A Bearing?

The 727 ACD/ P4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads.Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

What's the Applications of the 727 ACD/ P4A Bearing?

The 727 ACD/ P4A ,angular contact ball bearings, known for their high precision, are crucial in precision instruments for accurate rotation, in power tools for high-speed operation, in automotive parts for reliability under heavy loads, in aerospace for critical components requiring top performance, and in machine tools for high-speed, high-precision tasks. These bearings ensure reliable and precise operation across various industries.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
