708 CE/HCP4A Super Precision High Speed Single Row Angular Contact Ball Bearing

Name: 708 CE/HCP4A Super Precision High Speed Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 708 CE/HCP4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 708 CE/HCP4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 100000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	708 CE/HCP4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF
Coating:	Without	Sealing:	Without
Design:	High-speed E	Contact Type:	Normal Contact (two-point Contact)

Part Number:	708 CE/HCP4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without
Sealing:	Without
Design:	High-speed E
Contact Type:	Normal Contact (two-point Contact)

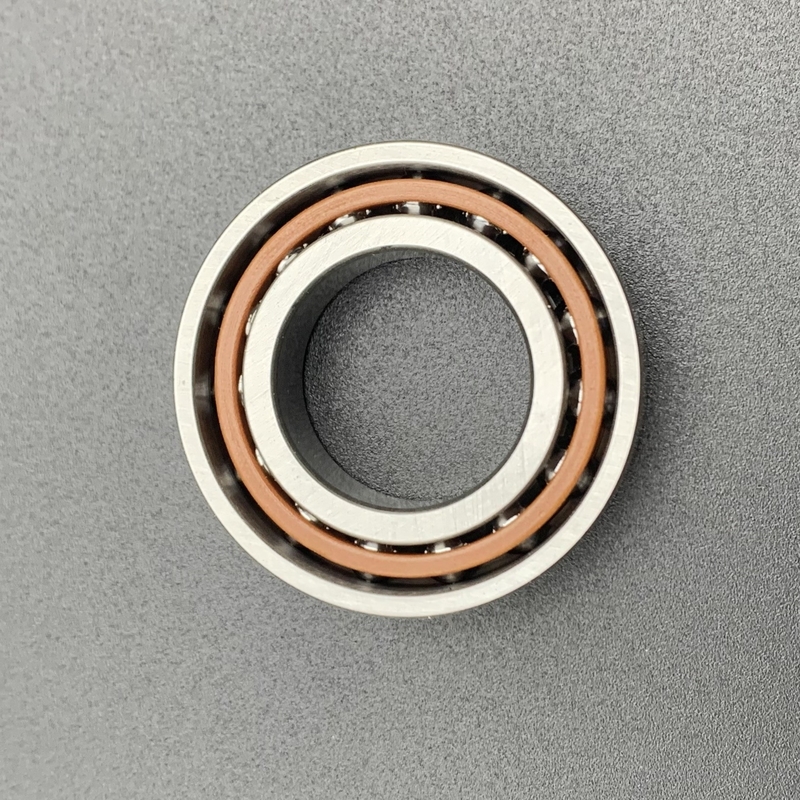

708 CE/HCP4A Super Precision High Speed Single Row Angular Contact Ball Bearing

708 CE/HCP4A 8*22*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed Spindle Tools CNC Machine

The 708 CE/HCP4A bearing,bore diameter is 8 mm, outside diameter is 22mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	708 CE/HCP4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	8 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	22 mm
	Outer Bore Diameter Tolerance	-0.005mm to 0
	Width (B)	7mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Hybrid (Chrome Steel Rings, Ceramic Balls)
	Cage Material	Phenolic
	Number of Rows	Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.011 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	2340 N
	Static Radial Load	800 N
	Reference Speed For Grease (r/min)	130,000 rpm
	Limiting Speed For Oil(r/min)	200,000 rpm

708 CE/HCP4A Super Precision High Speed Single Row Angular Contact Ball Bearing 0

708 CE/HCP4A Super Precision High Speed Single Row Angular Contact Ball Bearing 1

What's the Performance Features of 708 CE/HCP4A Bearing?

The 708 CE/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

What's the Applications of the 708 CE/HCP4A Bearing?

The 708 CE/HCP4A bearing,a precision angular contact ball bearing, is designed for high accuracy and performance, making it ideal for machine tools, high-speed rotational applications like power tools and precision instruments, as well as critical sectors such as aerospace, automotive engineering, and industrial automation. Its P4 precision class ensures high rotational accuracy and low noise, while its ability to handle large radial and bidirectional axial loads makes it suitable for severe operating conditions. This versatile bearing is essential for applications requiring high reliability, precision, and durability.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
