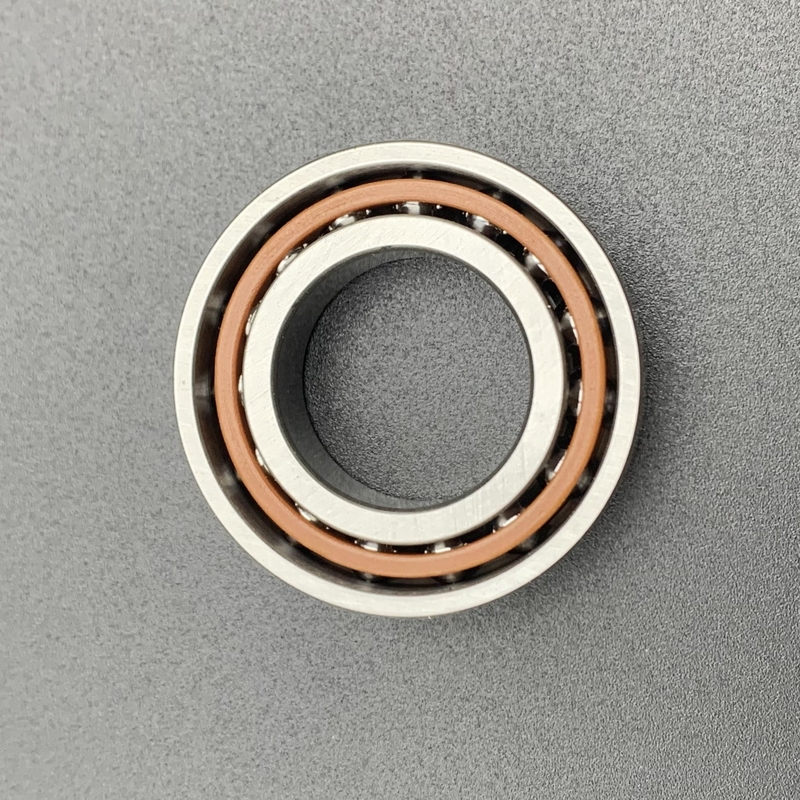

709 ACD/HCP4A Super Precision High Capacity Single Row Angular Contact Ball Bearing
709 ACD/HCP4A 9*24*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
The 709 ACD/HCP4A bearing,bore diameter is 9 mm, outside diameter is 24mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
709 ACD/HCP4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
9 mm |
| Inner Bore Diameter Tolerance |
-0.004mm to 0 |
| Outer Bore Diameter (D) |
24 mm |
| Outer Bore Diameter Tolerance |
-0.005mm to 0 |
| Width (B) |
7mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
25° (15°,40° Available) |
| Material |
Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.013 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
3450 N |
| Static Radial Load |
1530 N |
| Reference Speed For Grease (r/min) |
85,000 rpm |
| Limiting Speed For Oil(r/min) |
130,000 rpm |
What's the Performance Features of 709 ACD/HCP4A Bearing?
The 709 ACD/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 709 ACD/HCP4A Bearing?
The 709 ACD/HCP4A bearing, a high-precision angular contact ball bearing, is widely used across various industries and transportation sectors. It excels in applications such as plastic welders, steelmaking equipment, burner components, centrifugal pumps, milling machines, automotive transmission and suspension systems, ship propeller shafts, electrical devices, woodworking machinery, chemical processing equipment, and foundation treatment machinery. This bearing supports high loads and speeds, operates reliably in harsh conditions, and ensures precise and efficient performance, making it indispensable for maintaining quality and longevity in diverse mechanical systems.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
