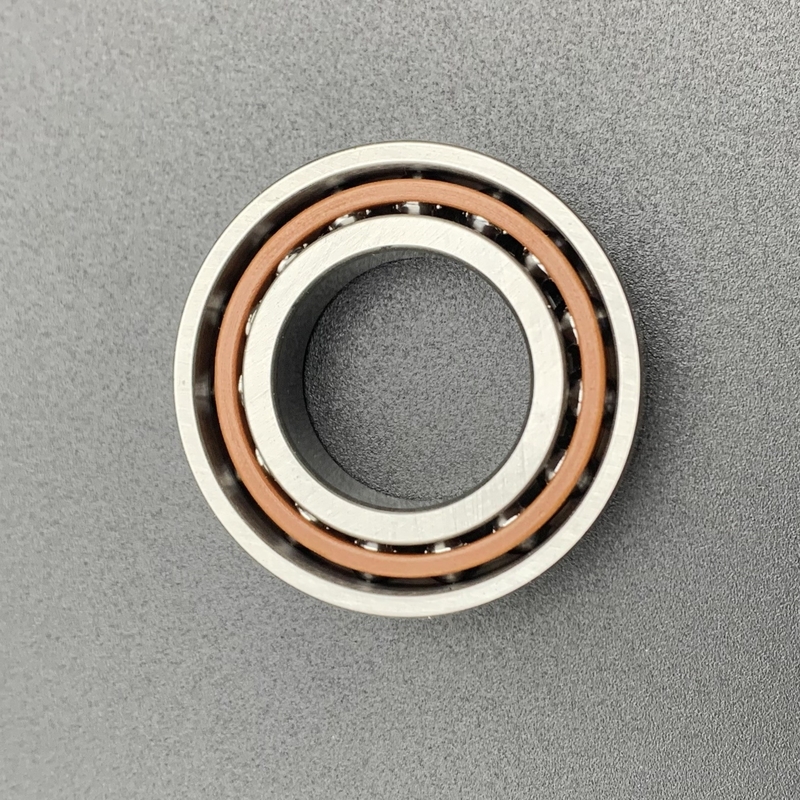

709 ACDGB/P4A Super Precision High Capacity Single Row Angular Contact Ball Bearing
709 ACDGB/P4A 9*24*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed Spindle Tools CNC Machine
The 709 ACDGB/P4A bearing,bore diameter is 9 mm, outside diameter is 24mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
709 ACDGB/P4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
9 mm |
| Inner Bore Diameter Tolerance |
-0.004mm to 0 |
| Outer Bore Diameter (D) |
24 mm |
| Outer Bore Diameter Tolerance |
-0.004mm to 0 |
| Width (B) |
7mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
25° (15°,40° Available) |
| Material |
Chrome Steel |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.015 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings |
| Preload |
LLight/Class B |
| Load and Speed |
Dynamic Radial Load |
3450 N |
| Static Radial Load |
1530 N |
| Reference Speed For Grease (r/min) |
170,000 rpm |
| Limiting Speed For Oil(r/min) |
220,000 rpm |
What's the Performance Features of 709 ACDGB/P4A Bearing?
The 709 ACDGB/P4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 709 ACDGB/P4A Bearing?
The 709 ACDGB/P4A bearing, a super-precision angular contact ball bearing,is widely used in industries requiring high rotational accuracy and load-bearing capacity, such as industrial machinery, petrochemical equipment, transportation vehicles, electronic devices, and scientific research instruments. Its high-speed capability, rigidity, heat and corrosion resistance, reliability, and low noise/vibration performance make it suitable for applications ranging from machine tools and refining machinery to automotive components, HDDs, and precision measurement equipment. Additionally, it finds use in specialized fields like aerospace, medical devices, and robotics, where it meets stringent operational requirements. Continuous improvements in SKF's manufacturing processes ensure enhanced performance, and users should refer to the latest technical specifications for optimal application.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
