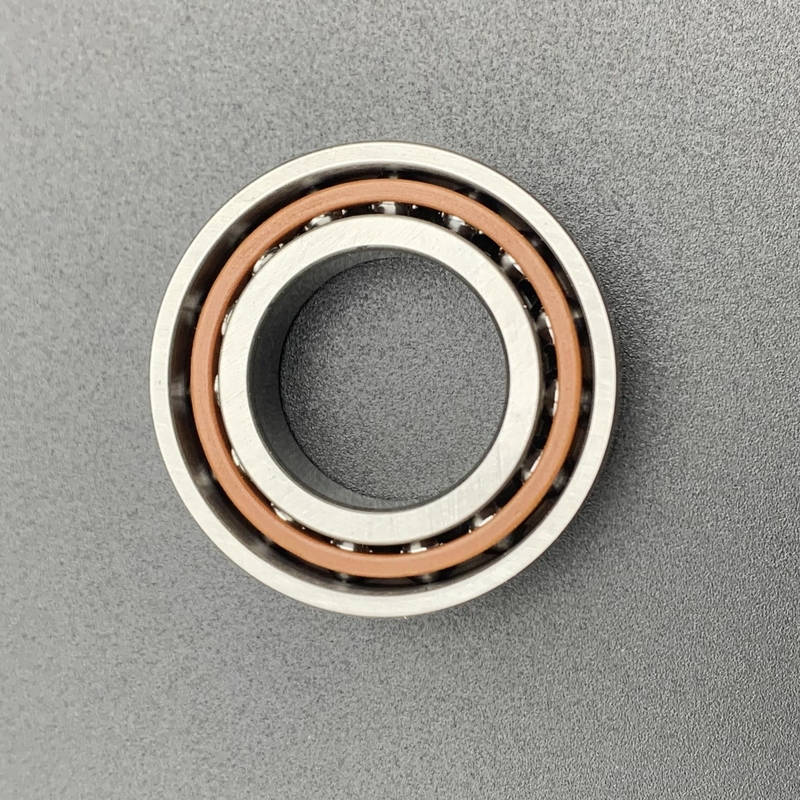

709 CD/P4ADBB Super Precision High Capacity Two Rows Angular Contact Ball Bearing
709 CD/P4ADBB 9*24*14 mm Super Precision High Capacity Two Single Row Angular Contact Ball Bearing High Speed Spindle Tools CNC Machine
The 709 CD/P4ADBB bearing,bore diameter is 9 mm, outside diameter is 24mm,width is 14 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
709 CD/P4ADBB |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
9 mm |
| Inner Bore Diameter Tolerance |
-0.004mm to 0 |
| Outer Bore Diameter (D) |
24 mm |
| Outer Bore Diameter Tolerance |
-0.004mm to 0 |
| Width (B) |
14 mm (2*7mm) |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
15° (25°,40° Available) |
| Material |
Chrome Steel |
| Cage Material |
Phenolic |
| Number of Rows |
2 (2* Single Row) |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.030 kg |
| Matched Arrangement |
DB Back-to-back <> 2 bearings |
| Universal Matching Bearing |
No |
| Preload |
L/Light/Class B |
| Load and Speed |
Dynamic Radial Load |
5720 N |
| Static Radial Load |
3200 N |
| Reference Speed For Grease (r/min) |
60,000 rpm |
| Limiting Speed For Oil(r/min) |
95,000 rpm |
What's the Performance Features of 709 CD/P4ADBB Bearing?
The 709 CD/P4ADBB bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the 709 CD/P4ADBB Bearing?
The 709 ACD/P4ADBB bearing, a super-precision angular contact ball bearing,is widely utilized in industrial sectors that demand high precision and stability, including metallurgy, power generation, steel production, and machine tool industries. It ensures stable and efficient operation in critical applications such as rolling mills, wind turbine gearboxes, blast furnace blowers, and CNC machine tools. Additionally, this bearing supports heavy-duty equipment in mining, construction, and road construction machinery, as well as enhances the performance and safety of railway vehicles. Its exceptional performance characteristics make it indispensable for achieving precise, reliable, and high-efficiency operations across diverse industrial applications.
| CERTIFICATE |
IATF16949:2016,RoHS & REACH |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
