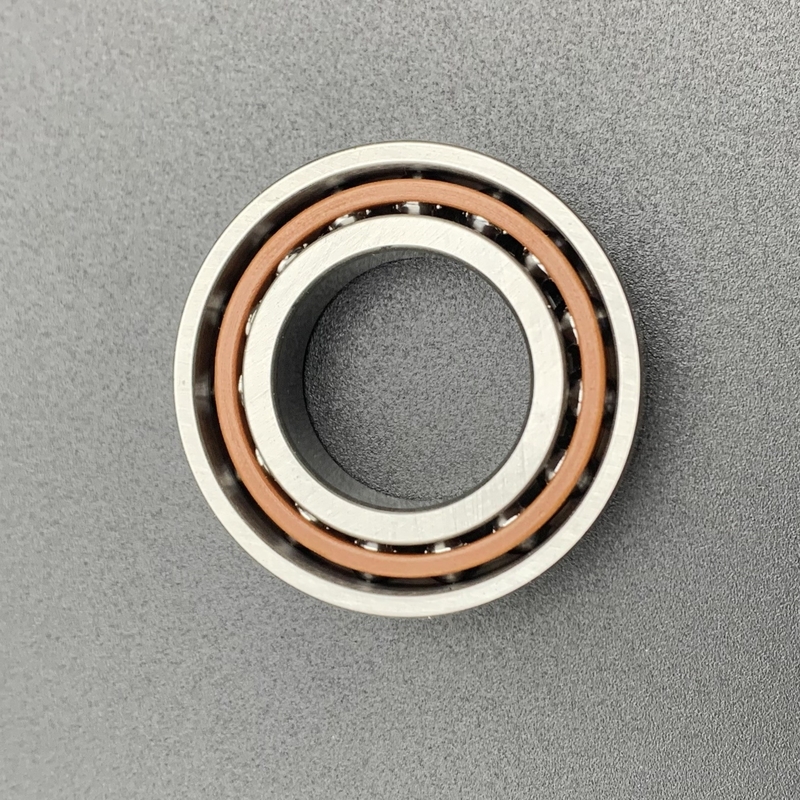

7000 CD/P4ADGC Super Precision High Capacity 2 Rows Angular Contact Ball Bearing

Name: 7000 CD/P4ADGC Super Precision High Capacity 2 Rows Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7000 CD/P4ADGC
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 7000 CD/P4ADGC

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Payment Terms: L/C,T/T

Supply Ability: 100000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	7000 CD/P4ADGC Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	7000 CD/P4ADGC Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

7000 CD/P4ADGC Super Precision High Capacity 2 Rows Angular Contact Ball Bearing

7000 CD/P4ADGC 10*26*16 mm Super Precision High Capacity Two Single Row Angular Contact Ball Bearing High Speed

The 7000 CD/P4ADGC bearing,bore diameter is 10 mm, outside diameter is 26 mm,width is 16 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	7000 CD/P4ADGC
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	10 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	26 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	16 mm (2*8mm)
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	2 (2* Single Row)
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.038 kg
	Matched Arrangement	Universal Matching
	Universal Matching Bearing	Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
	Preload	M/Moderate/Class C
Load and Speed	Dynamic Radial Load	6630 N
	Static Radial Load	3250 N
	Reference Speed For Grease (r/min)	140,000 rpm
	Limiting Speed For Oil(r/min)	185,000 rpm

7000 CD/P4ADGC Super Precision High Capacity 2 Rows Angular Contact Ball Bearing 0

7000 CD/P4ADGC Super Precision High Capacity 2 Rows Angular Contact Ball Bearing 1

What's the Performance Features of 7000 CD/P4ADGC Bearing?

The 7000 CD/P4ADGC bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

What's the Applications of the 7000 CD/P4ADGC Bearing?

The 7000 CD/P4ADGC bearing, a super-precision angular contact ball bearing,is widely utilized in machine tool spindles and other high-precision, high-speed machinery due to its superior performance and self-aligning capabilities. It ensures precise and stable operation in critical applications such as food processing machinery, medical instruments like CT scanners and MRI machines, and aerospace equipment, where it must endure extreme conditions. This versatile bearing enhances accuracy, stability, and efficiency across various industrial sectors.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
