Highlight:
Part Number: |
S7002 ACE/P4ATFTA Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |

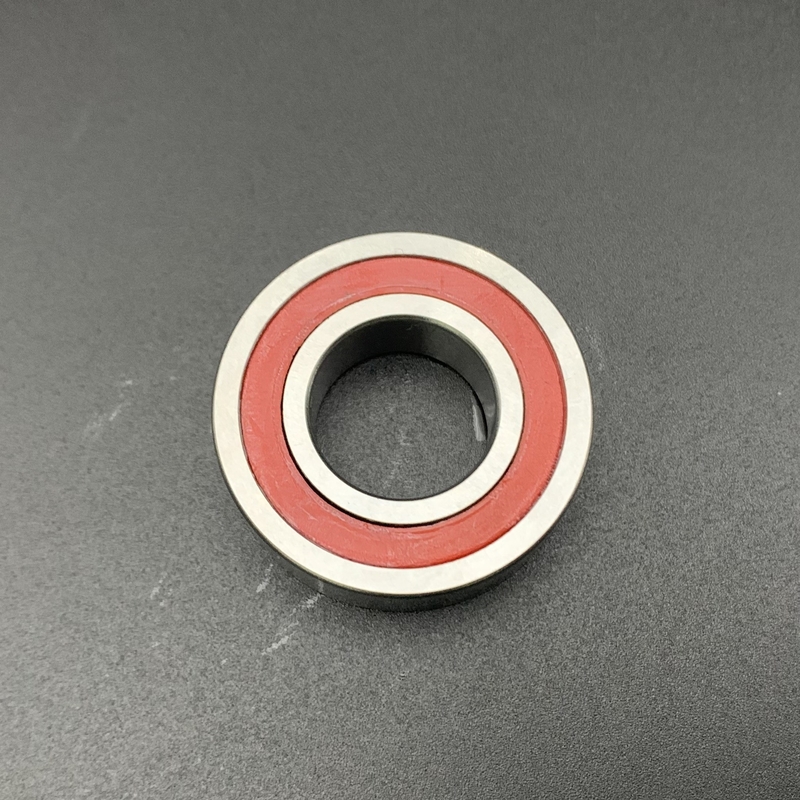

S7002 ACE/P4ATFTA Super Precision Single Row Angular Contact Ball Bearing
S7002 ACE/P4ATFTA 15*32*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Matched set of three super-precision, high-speed, E design, single row angular contact ball bearings
The S7002 ACE/P4ATFTA bearing,bore diameter is 15 mm, outside diameter is 32 mm,width is 27 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
S7002 ACE/P4ATFTA |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
15 mm |
| Inner Bore Diameter Tolerance |
-0.004mm to 0 |
| Outer Bore Diameter (D) |
32mm |
| Outer Bore Diameter Tolerance |
-0.004mm to 0 |
| Width (B) |
27 mm(3*9mm) |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
25° (15°,40° Available) |
| Material |
Chrome Steel |
| Cage Material |
Phenolic |
| Number of Rows |
3 (3*Single Row) |
| Seal Type |
Seal on both sides |
| Temperature Range |
-30°C to 150°C |
| Number of bearings in matched set |
3 |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.087 kg |
| Matched Arrangement |
TFT ><<face-to-face (><)and tandem (>>) 3 bearings |
| Universal Matching Bearing |
No |
| Preload |
EL/Extra Light/Class A |
| Load and Speed |
Dynamic Radial Load |
9230 N |
| Static Radial Load |
5500 N |
| Reference Speed For Grease (r/min) |
63,000 rpm |
| Limiting Speed For Oil(r/min) |
95,000 rpm |
What's the Performance Features of S702 ACE/P4ATFTA Bearing?
The S7002 ACE/P4ATFTA bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the S7002 ACE/P4ATFTA Bearing?
The S7002 ACE/P4ATFTA bearing, a high-performance angular contact ball bearing,is critical in applications requiring high precision and stability. Widely used in machine tool spindles and tailstocks, robotic joints, printing press cylinders, semiconductor manufacturing equipment, and medical devices, this bearing ensures precise movement, stability, and durability across diverse industrial sectors.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
