S7002 CD/P4A Super Precision Single Row Angular Contact Ball Bearing

Name: S7002 CD/P4A Super Precision Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S7002 CD/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S7002 CD/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	S7002 CD/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK S7002CTRV1VP4
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S7002 CD/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK S7002CTRV1VP4
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

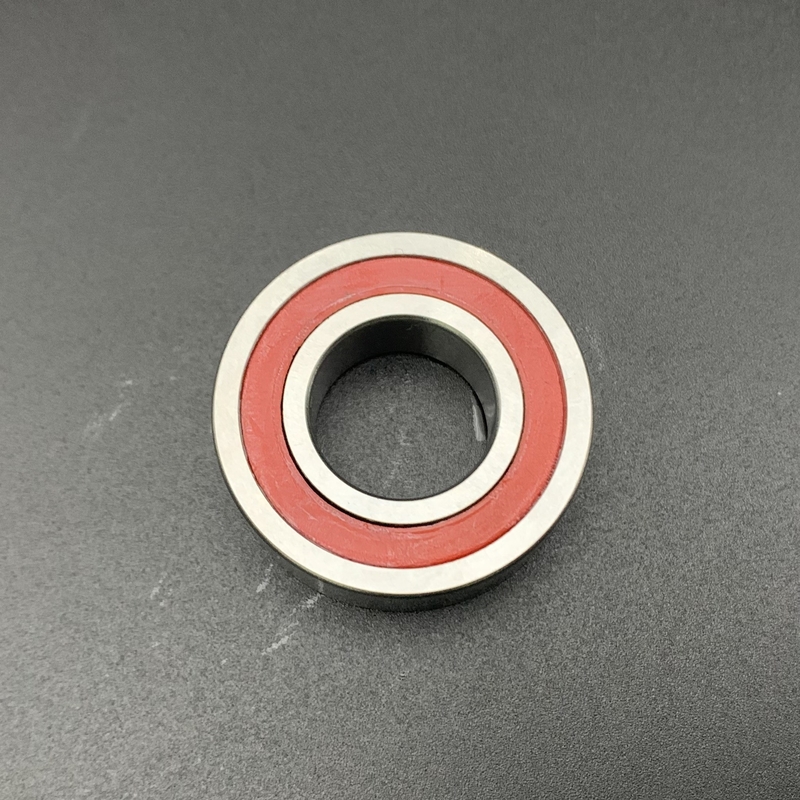

S7002 CD/P4A Super Precision Single Row Angular Contact Ball Bearing

S7002 CD/P4A 15*32*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision, high-capacity, single row angular contact ball bearing with seals

The S7002 CD/P4A bearing,bore diameter is 15 mm, outside diameter is 32 mm,width is 9 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	S7002 CD/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	15 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	32mm
	Outer Bore Diameter Tolerance	-0.006mm to 0
	Width (B)	9 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Seal on both sides
	Temperature Range	-30°C to 150°C
	Lubrication	Grease
	Tolerance Class	P4A better than P4
	Weight	0.03 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	5200 N
	Static Radial Load	2450 N
	Reference Speed For Grease (r/min)	56,000 rpm
	Limiting Speed For Oil(r/min)	85,000 rpm

S7002 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 0

S7002 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 1

What's the Performance Features of S7002 CD/P4A Bearing?

The S7002 CD/P4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.

What's the Applications of the S7002 CD/P4A Bearing?

The S7002 CD/P4A bearing, a high-performance angular contact ball bearing,is critical in various industries. It ensures stability and accuracy in high-speed operations of machine tool spindles, supports precise movements in industrial robots, maintains high precision and stability in printing presses, provides accurate measurements in precision devices like laser rangefinders, guarantees reliable operation in food processing equipment under harsh conditions, and offers excellent corrosion resistance and durability in marine applications, particularly in ship propulsion and navigation systems. Thus, this bearing is indispensable for achieving high performance and reliability across diverse sectors.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
