S71902 CD/P4A Super Precision Single Row Angular Contact Ball Bearing

Name: S71902 CD/P4A Super Precision Single Row Angular Contact Ball Bearing
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S71902 CD/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S71902 CD/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	S71902 CD/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK S7902CTRV1VP4 ,7902 2RZ
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S71902 CD/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK S7902CTRV1VP4 ,7902 2RZ
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

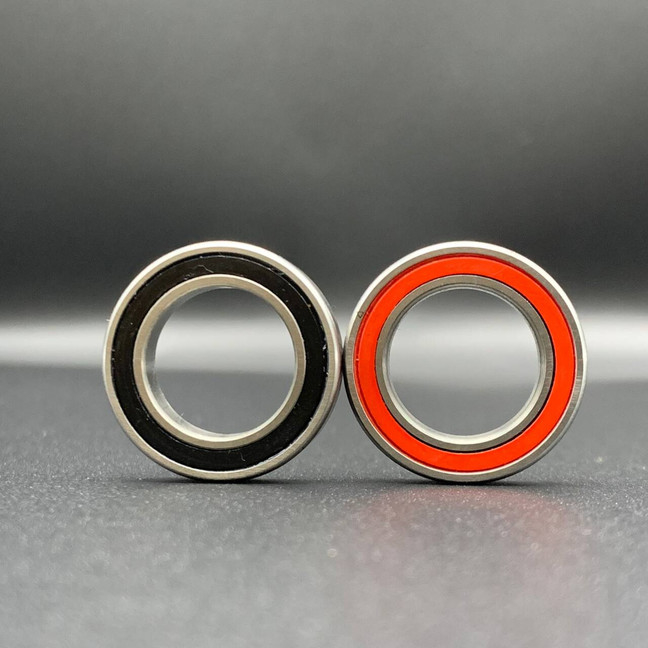

S71902 CD/P4A Super Precision Single Row Angular Contact Ball Bearing

S71902 CD/P4A 15*28*7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision, high-capacity, single row angular contact ball bearing with seals

The S71902 CD/P4A bearing,bore diameter is 15 mm, outside diameter is 28 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	S71902 CD/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	15 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	28 mm
	Outer Bore Diameter Tolerance	-0.005mm to 0
	Width (B)	7 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Seal on both sides
	Temperature Range	-30°C to 150°C
	Lubrication	Grease
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.015 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	3970 N
	Static Radial Load	1900 N
	Reference Speed For Grease (r/min)	60,000 rpm
	Limiting Speed For Oil(r/min)	90,000 rpm

S71902 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 0

S71902 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 1

What's the Performance Features of S71902 CD/P4A Bearing?

The S71902 CD/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the S71902 CD/P4A Bearing?

The S71902 CD/P4A bearing is is a high-performance angular contact ball bearing designed for superior rotational accuracy and load capacity, making it ideal for applications requiring high speed and precision. It is used in electric spindles for stable high-speed operation, high-speed machining centers for maintaining precision and stability, milling machines for rapid material processing, internal grinding machines under high temperature and pressure conditions, and woodworking machinery for handling large-sized materials efficiently. Its exceptional performance ensures optimal functionality and reliability across these demanding industrial applications.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
