Part Number: |
S7005 ACE/HCP4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-speed E |
Contact Type: |
Normal Contact (two-point Contact) |

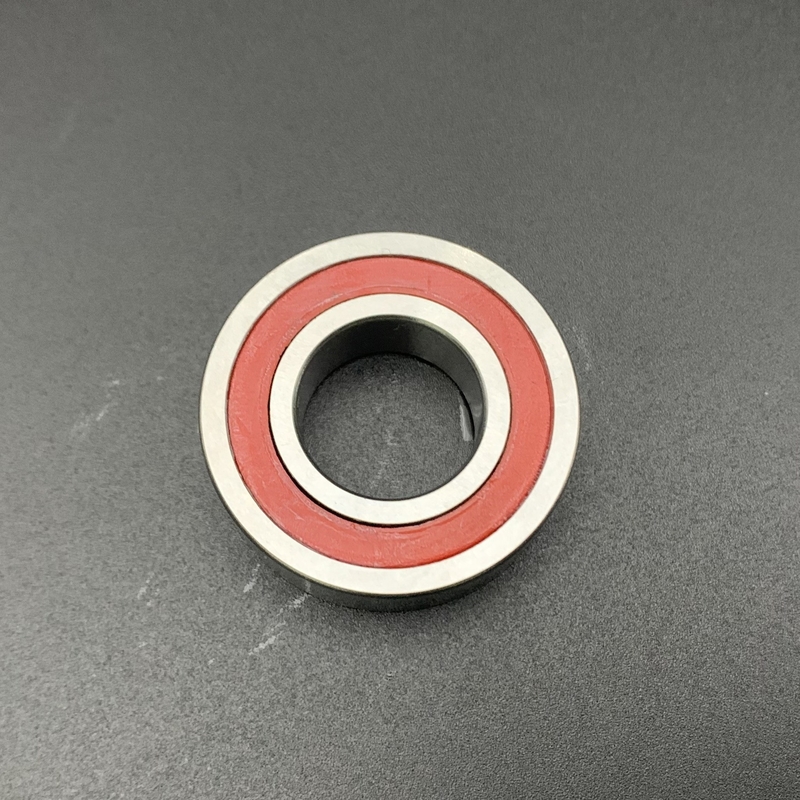

S7005 ACE/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7005 2RZ
S7005 ACE/HCP4A 25*47*12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed
Super-precision, high-speed E design, single row angular contact ball bearing with seals
The S7005 ACE/HCP4A bearing,bore diameter is 25 mm, outside diameter is 47 mm,width is 12 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
S7005 ACE/HCP4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
25 mm |
| Inner Bore Diameter Tolerance |
-0.005mm to 0 |
| Outer Bore Diameter (D) |
47 mm |
| Outer Bore Diameter Tolerance |
-0.006mm to 0 |
| Width (B) |
12 mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
25° (15°,40° Available) |
| Material |
Hybrid (Chrome Steel Rings, Ceramic Balls) |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Seal on both sides |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.069 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
7930 N |
| Static Radial Load |
3500 N |
| Reference Speed For Grease (r/min) |
50,000 rpm |
| Limiting Speed For Oil(r/min) |
75,000 rpm |
What's the Performance Features of S7005 ACE/HCP4A Bearing?
The S7005 ACE/HCP4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the S7005 ACE/HCP4A Bearing?
The S7005 ACE/HCP4A bearing is renowned for its versatility and robust performance, making it an essential component across a broad spectrum of industries. It is widely used in manufacturing equipment such as sand making machinery, vertical rubber machinery, and machining centers, as well as in welding devices like gas shielded arc welding machines and resistance welding machines where it withstands high temperatures and vibrations. Additionally, this bearing proves its reliability in other industrial applications including industrial sewing machines, band saws, and slaughtering equipment. Its ability to meet high-load and high-precision requirements ensures stable and efficient operation in diverse industrial settings, making it a critical part for ensuring the smooth running and high productivity of various devices.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
