Highlight:
Part Number: |
S71905 CD/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |

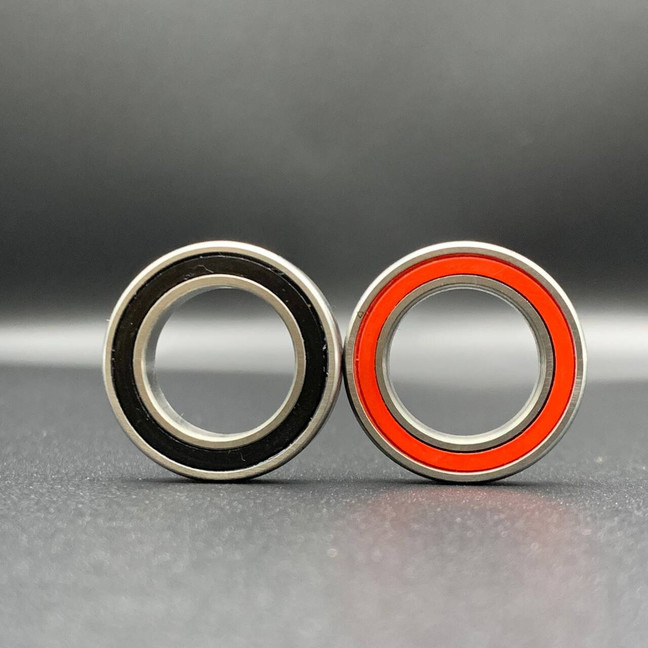

S71905 CD/P4A Super Precision Single Row Angular Contact Ball Bearing 7905
S71905 CD/P4A 25*42*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-capacity, single row angular contact ball bearing with seals
The S71905 CD/P4A bearing,bore diameter is 25 mm, outside diameter is 42 mm,width is 9 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
S71905 CD/P4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
25 mm |
| Inner Bore Diameter Tolerance |
-0.005mm to 0 |
| Outer Bore Diameter (D) |
42 mm |
| Outer Bore Diameter Tolerance |
-0.006mm to 0 |
| Width (B) |
9 mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
15° (25°,40° Available) |
| Material |
Chrome Steel |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Seal on both sides |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease |
| Tolerance Class |
P4A better than P4 (ABEC-7) |
| Weight |
0.043 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
6760 N |
| Static Radial Load |
4000 N |
| Reference Speed For Grease (r/min) |
38,000 rpm |
| Limiting Speed For Oil(r/min) |
56,000 rpm |
What's the Performance Features of S71905 CD/P4A Bearing?
The S71905 CD/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the S71905 CD/P4A Bearing?
The S71905 CD/P4A bearing,is a high-precision angular contact ball bearing essential for a wide array of industrial applications. It supports critical operations in steel, aluminum, chemical, and cement industries, enhances stability and efficiency in wind power generation, and improves the performance of construction machinery, automotive engines, and transmission systems. Additionally, it ensures safe and efficient operations in mining, port equipment, metallurgical processes, elevators, plastic machinery, compressors, and machine tools, while also contributing to the manufacturing and maintenance of heavy trucks and buses. Its versatility and precision make it indispensable across diverse and demanding industrial settings.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
