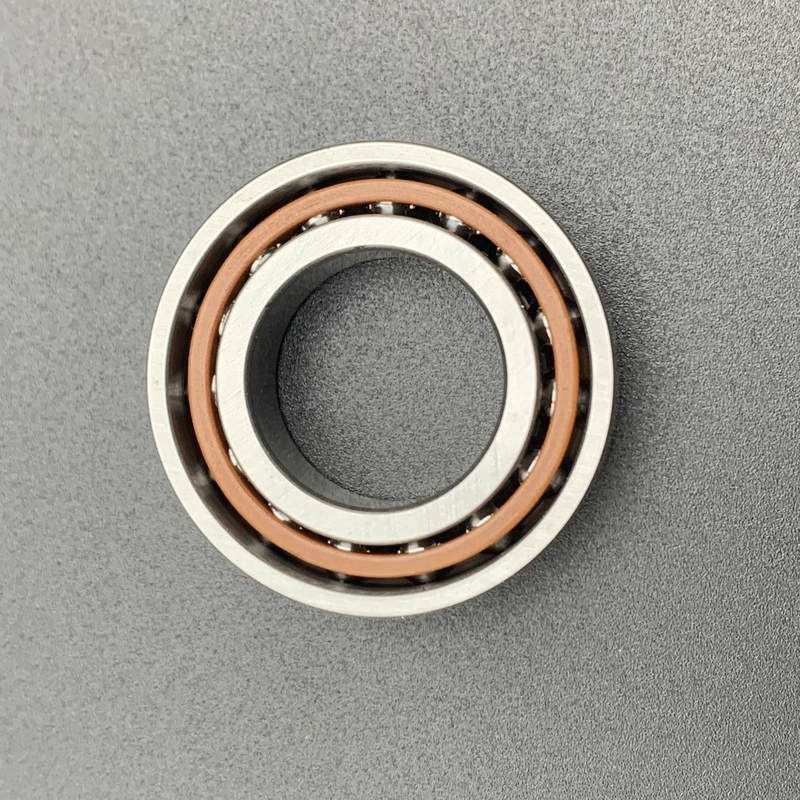

71905 FE/P4A Super Precision Single Row Angular Contact Ball Bearing 7905
71905 FE/P4A 25*42*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-sppeed E design, single row angular contact ball bearing
The 71905 FE/P4A bearing,bore diameter is 25 mm, outside diameter is 42 mm,width is 9 mm,featuring precise dimensions, high static load capacity, P4A precision grade,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
71905 FE/P4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
25 mm |
| Inner Bore Diameter Tolerance |
-0.005mm to 0 |
| Outer Bore Diameter (D) |
42 mm |
| Outer Bore Diameter Tolerance |
-0.006mm to 0 |
| Width (B) |
9 mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
18° (15° ,25°,40° Available) |
| Material |
Chrome Steel |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Open |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease or Oil |
| Tolerance Class |
P4A better than P4 (ABEC-7) |
| Weight |
0.04 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
5270 N |
| Static Radial Load |
2800 N |
| Reference Speed For Grease (r/min) |
46,500 rpm |
| Limiting Speed For Oil(r/min) |
71,500 rpm |
What's the Performance Features of 71905 FE/P4A Bearing?
The 71905 FE/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.
What's the Applications of the 71905 FE/P4A Bearing?
The 71905 FE/P4A bearing,is a high-performance component extensively used across various industrial applications, including freezers, printing machines, cutting equipment, and vacuum dryers, as well as in machine tool spindles for machining centers, lathes, and grinders where high precision and reliability are critical. Its robust design supports operations in extreme conditions, offering high rigidity, long service life, and minimal heat generation, making it ideal for semiconductor manufacturing and precision grinding. Additionally, its hybrid ceramic design and precise preload features make it suitable for specialized applications requiring high speeds and low friction, such as preservation equipment, cranes, and veterinary instruments, showcasing its versatility and adaptability across diverse industrial settings.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
