S7205 ACD/P4A Super Precision Single Row Angular Contact Ball Bearing 7205 2RZ

Name: S7205 ACD/P4A Super Precision Single Row Angular Contact Ball Bearing 7205 2RZ
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S7205 ACD/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S7205 ACD/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	S7205 ACD/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S7205 ACD/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

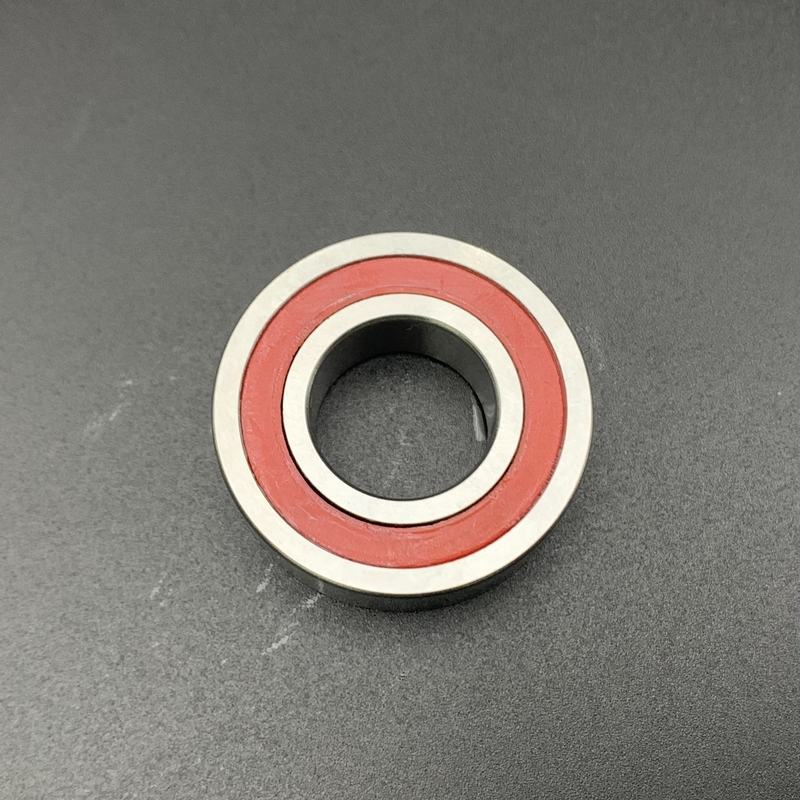

S7205 ACD/P4A Super Precision Single Row Angular Contact Ball Bearing 7205 2RZ

S7205 ACD/P4A 25*52*15 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing

Super-precision, high-capacity, single row angular contact ball bearing with seals

The S7205 ACD/P4A bearing,with a bore diameter of 25 mm, outside diameter of 52 mm, and width of 15 mm, features precise dimensions, high static load capacity, and is manufactured to the P4A precision grade.This bearing delivers superior performance and reliability, making it ideal for applications that require high rotational accuracy and stability.

Part Number	S7205 ACD/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	25 mm
	Inner Bore Diameter Tolerance	-0.005mm to 0
	Outer Bore Diameter (D)	52 mm
	Outer Bore Diameter Tolerance	-0.007mm to 0
	Width (B)	15 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Seal on both sides
	Temperature Range	-30°C to 150°C
	Lubrication	Grease
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.13 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	13000 N
	Static Radial Load	6950 N
	Reference Speed For Grease (r/min)	26,000 rpm
	Limiting Speed For Oil(r/min)	40,000 rpm

S7205 ACD/P4A Super Precision Single Row Angular Contact Ball Bearing 7205 2RZ 0

S7205 ACD/P4A Super Precision Single Row Angular Contact Ball Bearing 7205 2RZ 1

What's the Performance Features of S7205 ACD/P4A Bearing?

The S7205 ACD/P4A angular contact ball bearing is manufactured to P4A precision grade standards, excels in high-precision and high-performance applications. It handles both radial and axial loads simultaneously, supports high-speed operation with stability, minimizes torque and friction for energy efficiency, and offers enhanced rigidity for accuracy under heavy loads. Built with hybrid ceramic balls, this durable bearing ensures extended service life and effective performance across a wide temperature range, making it ideal for applications requiring superior rotational accuracy and reliability.

What's the Applications of the S7205 ACD/P4A Bearing?

The S7205 ACD/P4A bearing,a high-performance angular contact ball bearing designed to meet the demanding requirements of the machine tool industry, offering high speed, precision, system stiffness, low heat generation, and minimal noise and vibration. It is also extensively used in the aviation industry for its high reliability and long service life, especially in aircraft engines and precision mechanical components. Beyond these sectors, the S7205 ACD/P4A bearing is suitable for various other precision applications requiring high accuracy and high-speed operation, such as precision machinery and other specialized uses, demonstrating its broad adaptability and reliability across different fields.applications.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
