71906 CE/P4A Super Precision Single Row Angular Contact Ball Bearing 7906

Name: 71906 CE/P4A Super Precision Single Row Angular Contact Ball Bearing 7906
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71906 CE/P4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71906 CE/P4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	71906 CE/P4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK 7906CTRP4
Coating:	Without	Sealing:	Without
Design:	High-speed E	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71906 CE/P4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK 7906CTRP4
Coating:	Without
Sealing:	Without
Design:	High-speed E
Contact Type:	Normal Contact (two-point Contact)

71906 CE/P4A Super Precision Single Row Angular Contact Ball Bearing 7906

71906 CE/P4A 30*47*9 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision, high-speed E design, single row angular contact ball bearing

The 71906 CE/P4A bearing,bore diameter is 30 mm, outside diameter is 47 mm,width is 9 mm,featuring precise dimensions, high static load capacity, P4A precision grade,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	71906 CE/P4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	30 mm
	Inner Bore Diameter Tolerance	-0.005mm to 0
	Outer Bore Diameter (D)	47 mm
	Outer Bore Diameter Tolerance	-0.006mm to 0
	Width (B)	9 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.050 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	5590 N
	Static Radial Load	3250 N
	Reference Speed For Grease (r/min)	41,000 rpm
	Limiting Speed For Oil(r/min)	63,000 rpm

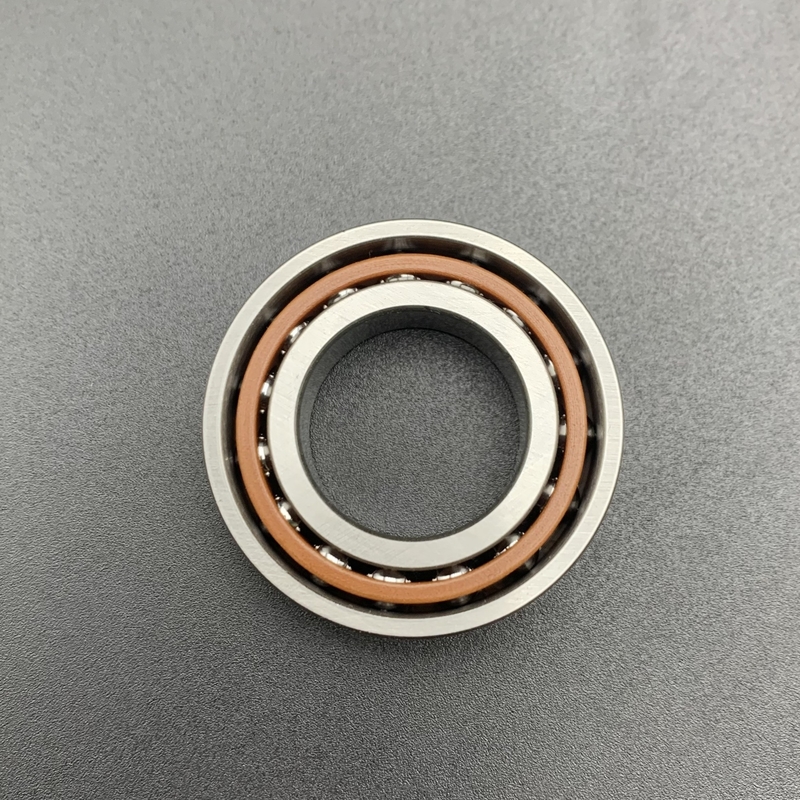

71906 CE/P4A Super Precision Single Row Angular Contact Ball Bearing 7906 0

71906 CE/P4A Super Precision Single Row Angular Contact Ball Bearing 7906 1

What's the Performance Features of 71906 CE/P4A Bearing?

The 71906 CE/P4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the 71906 CE/P4A Bearing?

The 71906 CE/P4A precision precision angular contact ball bearing is renowned for its high-speed capability, high load capacity, and precision performance. It is widely used in various fields including medical devices such as surgical tools and dental drills requiring high precision and low friction, industrial manufacturing equipment like plastic processing machines and crushers in harsh environments, precision machinery and semiconductor applications such as EDM and laser cutting devices needing high rotational speed and wear resistance, transportation and construction machinery including automotive transmissions and forklifts that demand high load-bearing capacity, and special environment applications like environmental protection equipment designed to withstand high temperatures and corrosion. This bearing excels across these diverse applications, ensuring optimal performance and reliability in demanding operational conditions.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
