71807 CD/P4 Super Precision Single Row Angular Contact Ball Bearing 7807

Name: 71807 CD/P4 Super Precision Single Row Angular Contact Ball Bearing 7807
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71807 CD/P4
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71807 CD/P4

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	71807 CD/P4 Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK 7807CSN24TRP4
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71807 CD/P4 Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK 7807CSN24TRP4
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

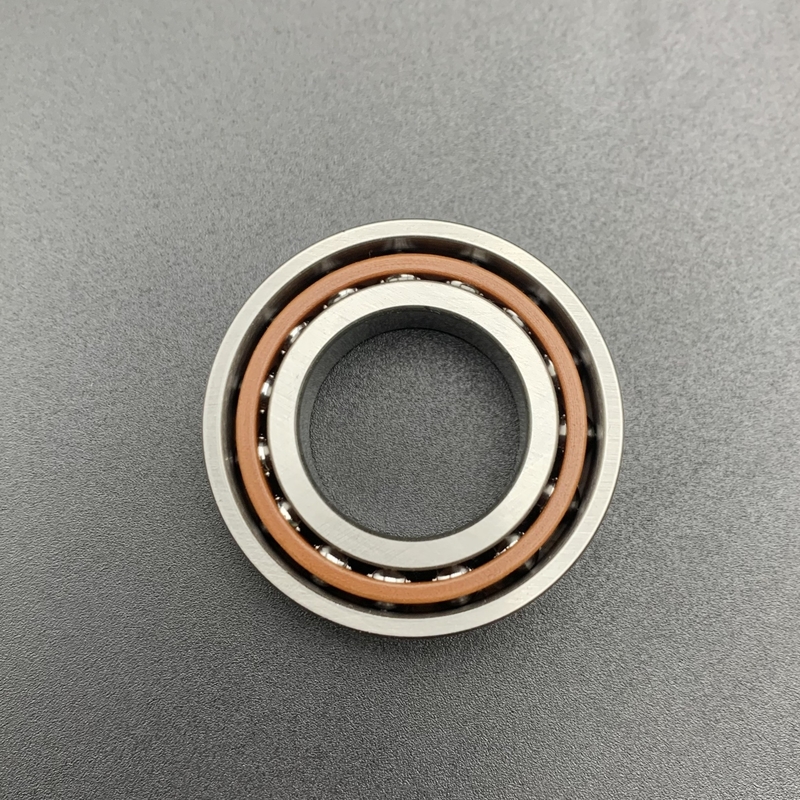

71807 CD/P4 Super Precision Single Row Angular Contact Ball Bearing 7807

71807 CD/P4 35*47*7 Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed

Super-precision, high-capacity, single row angular contact ball bearing

The 71807 CD/P4 bearing,bore diameter is 35 mm, outside diameter is 47 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4 precision grade,delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	71807 CD/P4
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	35 mm
	Inner Bore Diameter Tolerance	-0.006mm to 0
	Outer Bore Diameter (D)	42 mm
	Outer Bore Diameter Tolerance	-0.006mm to 0
	Width (B)	7 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4 (ABEC-7)
	Weight	0.028 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	4620 N
	Static Radial Load	4300 N
	Reference Speed For Grease (r/min)	28,000 rpm
	Limiting Speed For Oil(r/min)	43,000 rpm

71807 CD/P4 Super Precision Single Row Angular Contact Ball Bearing 7807 0

71807 CD/P4 Super Precision Single Row Angular Contact Ball Bearing 7807 1

What's the Performance Features of 71807 CD/P4 Bearing?

The 71807 CD/P4 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the 71807 CD/P4 Bearing?

The 71807 CD/P4 , is a super-precision angular contact ball bearing is designed for high-speed, high-precision, and low-noise performance, making it ideal for various demanding applications. It is extensively used in high-precision machine tools and spindle systems, ensuring accuracy and stability at high speeds; medical and laboratory equipment requiring high cleanliness and low vibration, such as surgical instruments and centrifuges; industrial machinery and automation equipment, including conveyors and packaging machinery; energy and heavy industry sectors, particularly in oil field equipment and wind turbine gearboxes; electronics and semiconductor manufacturing for devices like photolithography machines and PCB drilling machines needing ultra-high precision; and specialized fields like aerospace and testing instruments. This versatile bearing ensures optimal performance and reliability across a broad range of critical operational conditions.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
