71808 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7808

Name: 71808 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7808
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 71808 ACD/HCP4
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 71808 ACD/HCP4

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-3 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	71808 ACD/HCP4 Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Open (2RZ Available)	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil	Replaceable With:	SKF, NSK 7808A5SN24TRP4
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	71808 ACD/HCP4 Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Open (2RZ Available)
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF, NSK 7808A5SN24TRP4
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

71808 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7808

71808 ACD/HCP4 40*52*7 Super Precision High Capacity Single Row Angular Contact Ball Bearing Ceramic Balls High Speed

Super-precision, high-capacity, single row angular contact ball bearing

The 71808 ACD/HCP4 bearing,bore diameter is 40 mm, outside diameter is 52 mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4 precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	71808 ACD/HCP4
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	40 mm
	Inner Bore Diameter Tolerance	-0.006mm to 0
	Outer Bore Diameter (D)	52 mm
	Outer Bore Diameter Tolerance	-0.007mm to 0
	Width (B)	7 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Hybrid (Chrome Steel Rings, Ceramic Balls)
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4 (ABEC-7)
	Weight	0.029 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	4490 N
	Static Radial Load	4550 N
	Reference Speed For Grease (r/min)	28,000 rpm
	Limiting Speed For Oil(r/min)	43,000 rpm

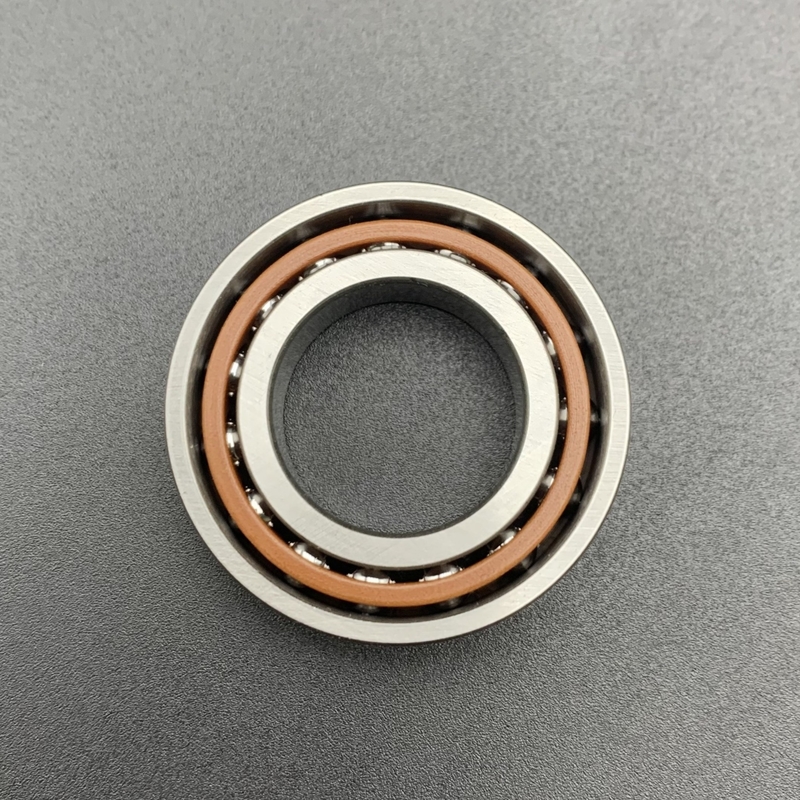

71808 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7808 0

71808 ACD/HCP4 Super Precision Single Row Angular Contact Ball Bearing 7808 1

What's the Performance Features of 71808 ACD/HCP4 Bearing?

The 71808 ACD/HCP4 angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the 71808 ACD/HCP4 Bearing?

The 71808 ACD/HCP4 ,a high-precision angular contact ball bearing designed for high speed, precision, and rigidity, featuring hybrid ceramic balls and a 25° contact angle. It is widely used in industrial manufacturing for precision machining and dynamic load handling, testing and laboratory equipment for stability and accuracy, food and packaging machinery requiring hygiene and continuous operation, energy and environmental protection equipment for durability and wear resistance, as well as specialized fields like printing, textile, and medical devices where low vibration and longevity are critical. This bearing ensures reliable performance across diverse and demanding applications.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
