Highlight:
Part Number: |
S7007 ACD/P4A Angular Contact Ball Bearing |
Structure: |
Angular Contact |
Seals Type: |
Sealed,Seal On Both Sides,2RZ |
Ring Type: |
One-piece Inner And Outer Rings |
Lubrication: |
Grease |
Replaceable With: |
SKF, NSK S7007A5TRV1VP4 |
Coating: |
Without |
Sealing: |
Without |
Design: |
High-capacity D |
Contact Type: |
Normal Contact (two-point Contact) |

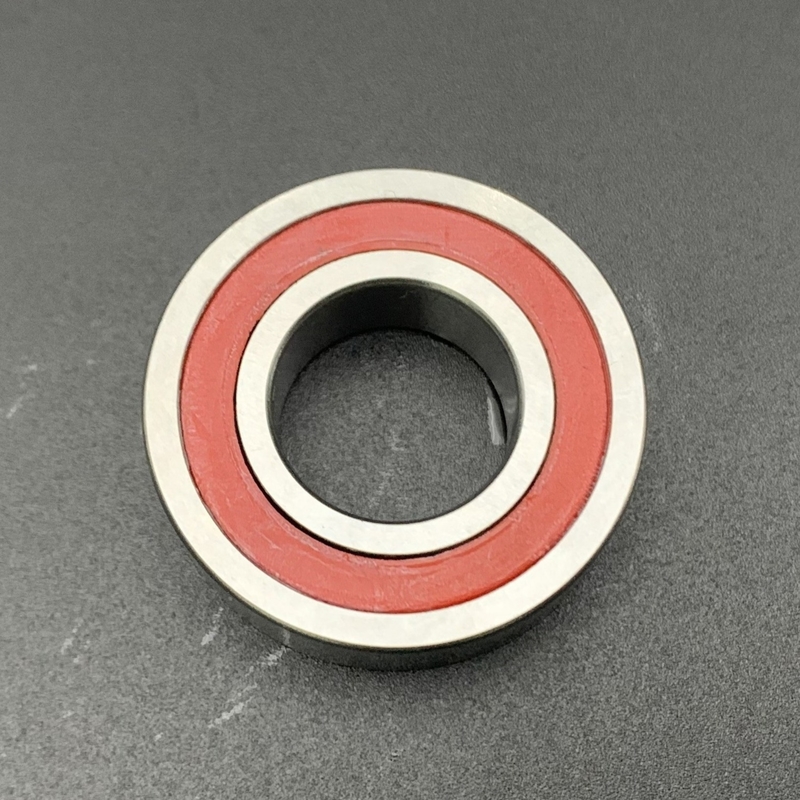

S7007 ACD/P4A Super Precision Single Row Angular Contact Ball Bearing
S7007 ACD/P4A 35*62*14 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed
Super-precision, high-capactity D design, single row angular contact ball bearing
The S7007 ACD/P4A bearing,bore diameter is 35 mm, outside diameter is 62 mm,width is 14 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.
| Part Number |
S7007 ACD/P4A |
| Bearing Type |
Angular Contact |
| Measurement Unit |
Metric |
| Dimensions |
Inner Bore Diameter (d) |
35 mm |
| Inner Bore Diameter Tolerance |
-0.006mm to 0 |
| Outer Bore Diameter (D) |
62 mm |
| Outer Bore Diameter Tolerance |
-0.007mm to 0 |
| Width (B) |
14 mm |
| Width Tolerance |
-0.2mm to 0 |
| Specifications |
Contact Angle |
25° (15°,40° Available) |
| Material |
Chrome Steel |
| Cage Material |
Phenolic |
| Number of Rows |
1 Single Row |
| Seal Type |
Seal on both sides |
| Temperature Range |
-30°C to 150°C |
| Lubrication |
Grease |
| Tolerance Class |
P4A better than P4 |
| Weight |
0.15 kg |
| Matched Arrangement |
No |
| Universal Matching Bearing |
No |
| Preload |
Not applicable |
| Load and Speed |
Dynamic Radial Load |
14800 N |
| Static Radial Load |
9000 N |
| Reference Speed For Grease (r/min) |
20,000 rpm |
| Limiting Speed For Oil(r/min) |
32,000 rpm |
What's the Performance Features of S7007 ACD/P4A Bearing?
The S7007 ACD/P4A bearing, engineered for high-performance applications, features P4A grade precision, an angular contact design for handling significant radial and axial loads. Optimized for high-speed operation with minimal vibration, it offers smooth, quiet performance and is constructed from premium materials to ensure durability and longevity. This bearing maintains high precision during operation, making it ideal for critical applications in machine tools, automation, aerospace, medical devices, and other industries requiring exceptional accuracy and reliability.
What's the Applications of the S7007 ACD/P4A Bearing?
The S7007 ACD/P4A super precision angular contact ball bearing, featuring high-speed capability, high load-bearing capacity, and a sealed design with a 25° contact angle, is widely applied in diverse fields including industrial machinery like plastic processing and construction equipment, precision manufacturing and machining tools, fluid and thermal systems such as pumps and refrigeration units, specialized industries like textile and food processing, and other areas such as automation control and environmental protection equipment. This bearing excels by providing exceptional performance in speed, load capacity, and reliability across these challenging applications.
| CERTIFICATE |
RoHS & REACH, IATF16949:2016 |
| Feature |
High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity |
| Service |
OEM&ODM Customized Services |
| Samples |
Please Contact Us |
| Service |
Online Support,Professional Service |
| Size |
Standard,For custom sizes ,please contact us |
| Factory Manufacturer |
Yes |
