S71908 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7908 2RZ

Name: S71908 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7908 2RZ
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: S71908 CD/HCP4A
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: S71908 CD/HCP4A

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 2-4 weeks

Payment Terms: L/C,T/T

Supply Ability: 200000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	S71908 CD/HCP4A Angular Contact Ball Bearing	Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ	Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease	Replaceable With:	SKF, NSK S7908CSN24TRV1VP4
Coating:	Without	Sealing:	Without
Design:	High-capacity D	Contact Type:	Normal Contact (two-point Contact)

Part Number:	S71908 CD/HCP4A Angular Contact Ball Bearing
Structure:	Angular Contact
Seals Type:	Sealed,Seal On Both Sides,2RZ
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease
Replaceable With:	SKF, NSK S7908CSN24TRV1VP4
Coating:	Without
Sealing:	Without
Design:	High-capacity D
Contact Type:	Normal Contact (two-point Contact)

S71908 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7908 2RZ

S71908 CD/HCP4A 40*62*12 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing Hybrid Ceramic Balls High Speed

Super-precision, high-capacity design, single row angular contact ball bearing with seals

The S71908 CD/HCP4A bearing,bore diameter is 40 mm, outside diameter is 62 mm,width is 12 mm,featuring precise dimensions, high static load capacity, P4A precision grade, and hybrid ceramic balls, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	S71908 CD/HCP4A
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	40 mm
	Inner Bore Diameter Tolerance	-0.006mm to 0
	Outer Bore Diameter (D)	62 mm
	Outer Bore Diameter Tolerance	-0.007mm to 0
	Width (B)	12 mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	15° (25°,40° Available)
	Material	Hybrid (Chrome Steel Rings, Ceramic Balls)
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Seal on both sides
	Temperature Range	-30°C to 150°C
	Lubrication	Grease
	Tolerance Class	P4A better than P4 (ABEC-7)
	Weight	0.1 kg
	Matched Arrangement	No
	Universal Matching Bearing	No
	Preload	Not applicable
Load and Speed	Dynamic Radial Load	12400 N
	Static Radial Load	8500 N
	Reference Speed For Grease (r/min)	26,000 rpm
	Limiting Speed For Oil(r/min)	40,000 rpm

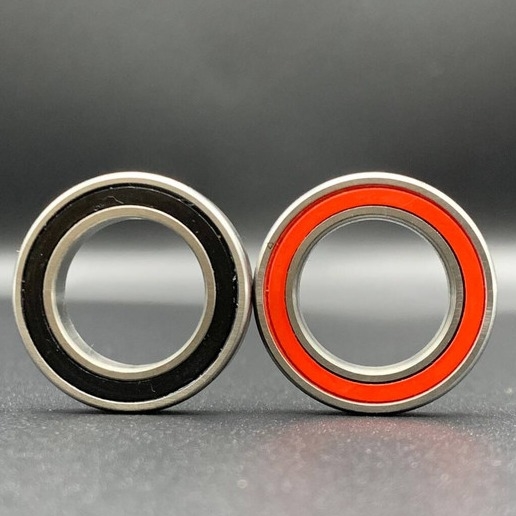

S71908 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7908 2RZ 0

S71908 CD/HCP4A Super Precision Single Row Angular Contact Ball Bearing 7908 2RZ 1

What's the Performance Features of S71908 CD/HCP4A Bearing?

The S71908 CD/HCP4A angular contact ball bearing is engineered for high-precision and high-performance applications, featuring very tight tolerances suitable for precise machinery, the ability to handle both radial and axial loads simultaneously, high-speed operation with stability, low torque and friction for energy efficiency, enhanced rigidity for accuracy under heavy loads, durability with extended service life, effective performance across a wide temperature range.

What's the Applications of the S71908 CD/HCP4A Bearing?

The S71908 CD/HCP4A precision angular contact ball bearing is designed for high-speed, high-precision, and corrosion-resistant applications across various industries. It excels in food processing equipment requiring stringent sealing and corrosion resistance, industrial machinery like gas shielded welding machines, grinding machines, and screw pumps needing stable operation under moderate loads, and packaging and printing equipment such as offset printing machines demanding low noise and precise positioning. Additionally, it is suitable for medical and laboratory equipment like centrifuges that require high rotational speeds and low friction, as well as special applications including rock drills and high-speed motors, where its hybrid ceramic balls and P4-level precision ensure exceptional performance under heavy loads and impacts. This versatile bearing ensures optimal performance in diverse and demanding environments.

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
