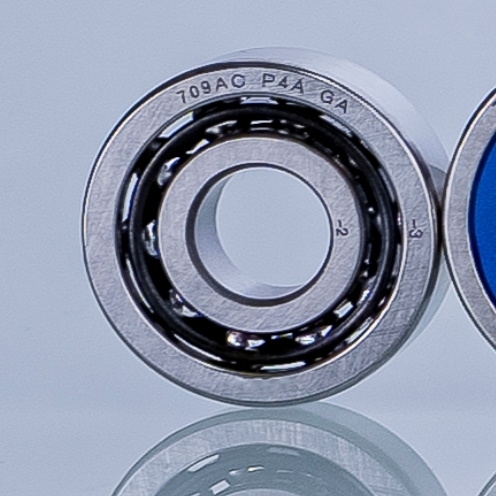

709 AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 9X24X7mm

Name: 709 AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 9X24X7mm
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 709 AC P4A GA
Availability: InStock

Product Details

Place of Origin: China

Brand Name: CNBTZC or OEM

Certification: IATF16949:2016

Model Number: 709 AC P4A GA

Payment & Shipping Terms

Minimum Order Quantity: 1000

Price: Please contact us,thanks

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Payment Terms: L/C,T/T

Supply Ability: 100000pcs per month

Get Best Price

Product Details

Product Description

Highlight:

Part Number:	709 AC P4A GA Angular Contact Ball Bearing	Structure:	Angular Contact
Ring Type:	One-piece Inner And Outer Rings	Lubrication:	Grease,Oil
Replaceable With:	SKF	Coating:	Without
Sealing:	Without	Contact Type:	Normal Contact (two-point Contact)

Part Number:	709 AC P4A GA Angular Contact Ball Bearing
Structure:	Angular Contact
Ring Type:	One-piece Inner And Outer Rings
Lubrication:	Grease,Oil
Replaceable With:	SKF
Coating:	Without
Sealing:	Without
Contact Type:	Normal Contact (two-point Contact)

709 AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 9X24X7mm

709 AC P4A GA 9X24X7 mm Super Precision High Capacity Single Row Angular Contact Ball Bearing High Speed Spindle Tools CNC Machine

The 709 AC P4A GA bearing,bore diameter is 9 mm, outside diameter is 24mm,width is 7 mm,featuring precise dimensions, high static load capacity, P4A precision grade, delivers superior performance and reliability for applications requiring high rotational accuracy and stability.

Part Number	709 AC P4A GA
Bearing Type	Angular Contact
Measurement Unit	Metric
Dimensions	Inner Bore Diameter (d)	9 mm
	Inner Bore Diameter Tolerance	-0.004mm to 0
	Outer Bore Diameter (D)	24 mm
	Outer Bore Diameter Tolerance	-0.004mm to 0
	Width (B)	7mm
	Width Tolerance	-0.2mm to 0
Specifications	Contact Angle	25° (15°,40° Available)
	Material	Chrome Steel
	Cage Material	Phenolic
	Number of Rows	1 Single Row
	Seal Type	Open
	Temperature Range	-30°C to 150°C
	Lubrication	Grease or Oil
	Tolerance Class	P4A better than P4
	Weight	0.015 kg
	Matched Arrangement	No
	Universal Matching Bearing	Yes,back-to-back (<>),face-to-face (><) or tandem (>>) DB,DF,DT 2 bearings
	Preload	EL/Extra Light/Class A
Load and Speed	Dynamic Radial Load	3450 N
	Static Radial Load	1530 N
	Reference Speed For Grease (r/min)	170,000 rpm
	Limiting Speed For Oil(r/min)	220,000 rpm

709 AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 9X24X7mm 0

709 AC P4A GA Super Precision Single Row Angular Contact Ball Bearing 9X24X7mm 1

What's the Performance Features of 709 AC P4A GA Bearing?

The 709 AC P4A GA precision angular contact bearing delivers unmatched stability for critical applications. Combining P4A-grade accuracy with superior load-handling capacity, it’s engineered for vibration-free high-speed operation in demanding environments like precision machine tools, aerospace systems, and medical devices. Premium materials ensure lasting reliability where performance is non-negotiable.

What's the Applications of the 709 AC P4A GA Bearing?

Engineered to P4A super-precision standards, the 709 AC P4A GA delivers unmatched performance in mission-critical operations across these key industries:

1. Precision Machine Tools
• High-speed spindles for CNC machining centers
• Rigid turning centers & multi-tasking lathes
• Precision grinding machine spindles
• Micro-milling & engraving spindles

2. Aerospace Systems
• Jet engine test rig spindles
• Satellite gyroscope stabilization units
• Aviation fuel control actuators
• Life-support system rotating assemblies

3. Medical Technology
• CT scanner gantry drives
• Surgical robot joint actuators
• Dental implant handpiece drives
• Proton therapy targeting mechanisms

4. Industrial Automation
• Robotic cycloidal reducers
• Semiconductor wafer handling arms
• Precision rotary stages
• Laser cutting head rotators

5. Specialized Equipment
• Metrology instrument spindles
• Ultra-centrifuge drives
• Optical fiber drawing capstans
• Vibration-isolated optical stages

CERTIFICATE	RoHS & REACH, IATF16949:2016
Feature	High Speed and Stiffness,High Running Accuracy,High Load Carrying Capacity
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes
