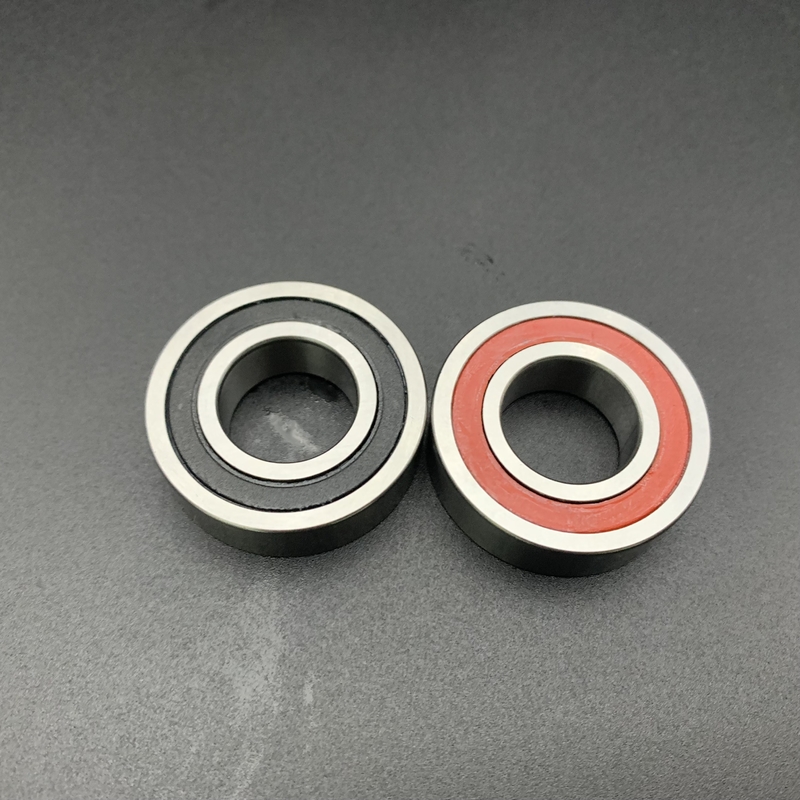

7004C-2RZ P4 Precision Ball Bearings 20x42x12mm Bearing Engraving Machines

Name: 7004C-2RZ P4 Precision Ball Bearings 20x42x12mm Bearing Engraving Machines
Brand: Beining Intelligent Technology (Zhejiang) Co., Ltd
SKU: 7004C-2RZ P4A Precision Angular Contact Ball Bearing
Availability: InStock

Product Details

Place of Origin: China

Brand Name: OEM

Certification: IATF16949:2016

Model Number: 7004C-2RZ P4A Precision Angular Contact Ball Bearing

Payment & Shipping Terms

Minimum Order Quantity: 100

Price: Please contact us

Packaging Details: plastic bag,box,carton,pallet

Delivery Time: 30 days

Supply Ability: 500000pcs per month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                20x42x12mm Bearing, P4 Precision Ball Bearings, 7004C-2RZ Precision Ball Bearings


Part Number:	7004C-2RZ P4 Precision Angular Contact Ball Bearing	Tolerance Class:	P4
Seals Color:	Red And Black	Contact Angle:	15°/C Angle
Lubrication:	Grease	Preload:	Light
Interchangeable With:	SKF	Sealed Type:	2RZ

Part Number:	7004C-2RZ P4 Precision Angular Contact Ball Bearing
Tolerance Class:	P4
Seals Color:	Red And Black
Contact Angle:	15°/C Angle
Lubrication:	Grease
Preload:	Light
Interchangeable With:	SKF
Sealed Type:	2RZ

7004C-2RZ P4 Precision Ball Bearings 20x42x12mm Bearing Engraving Machines

7004C-2RZ P4 Precision Angular Contact Ball Bearings Sealed 20x42x12mm Engraving Machine

Design Features of the 7004C-2RZ P4 Precision Angular Contact Bearing

The 7004C-2RZ P4A Precision Angular Contact Ball Bearing is crafted from superior materials and manufactured to exacting standards. It’s perfectly suited for high-speed spindles and precision instruments where accuracy and rapid operation are essential. This bearing delivers outstanding performance and maintains reliability even under challenging conditions.

Bearing Number	Dimensions(mm)					Basic Load Rating(N)		Limiting Speed(rpm)		Weight(Kg)
	Inner Diameter	Outer Diameter	Width	Chamfer		Dynamic	Static	Grease	Oil	Weight(Kg)
	d	D	B	rsmin	r1smin	Cr	Cor	Non-contact	Non-contact	reference
7004C-2RZ	20	42	12	0.6	0.3	6100	4300	45000	/	0.08

Ring Material	Steel
Roller Material	Steel Ball,Ceramic available
Cage Material	Bakelite Phenolic
Contact Angle	15°,25° & 40° available
Lubrication	Required Grease
Matched Arrangement	Available
Preload	Available
Number Of Bearings In Matched Set	2 pcs/set
Universal Matching Bearing	Yes,DB,DF,DT(Back to Back,Face to Face,Tandem)
Temperature Range	-30°C ~ +110°C
ABEC Rating Precision	P4 (ABEC7)P5,P2 available
CERTIFICATE	RoHS, IATF16949:2016
For Load Direction	Angular Contact
Service	OEM&ODM Customized Services
Samples	Please Contact Us
Service	Online Support,Professional Service
Size	Standard,For custom sizes ,please contact us
Factory Manufacturer	Yes

7004C-2RZ P4 Precision Ball Bearings 20x42x12mm Bearing Engraving Machines 0

7004C-2RZ P4 Precision Ball Bearings 20x42x12mm Bearing Engraving Machines 1

7004C-2RZ P4 Precision Angular Contact Ball Bearing Key Design Features:Dimensions:

Bore Diameter: 20 mm

Outer Diameter: 42 mm

Width: 12 mm

Material Quality: Crafted from high-quality materials to ensure durability and reliability under demanding conditions.

Precision Manufacturing: Manufactured to extremely tight tolerances, ensuring superior dimensional and geometric accuracy.

High-Speed Capability: Optimized for high-speed operation with minimal heat generation and friction, making it ideal for applications requiring rapid rotation.

Load Capacity: Capable of handling both radial and axial loads efficiently, thanks to its angular contact design.

Preload Options: Available with various preload options to enhance stiffness and reduce play, improving overall system precision.

Surface Finish: Superior surface finish on raceways and rolling elements reduces noise and extends service life.

This bearing is an essential component in industries that demand high precision and performance, such as machine tool spindles,high-speed machinery,aerospace components,medical equipment,semiconductor manufacturing,automotive industry,and scientific instruments.
